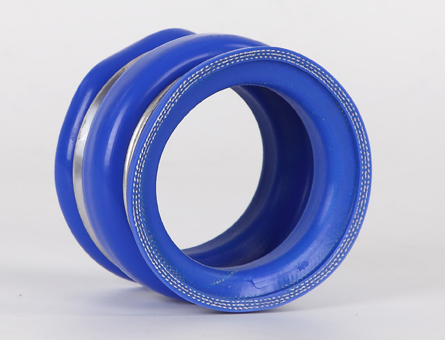

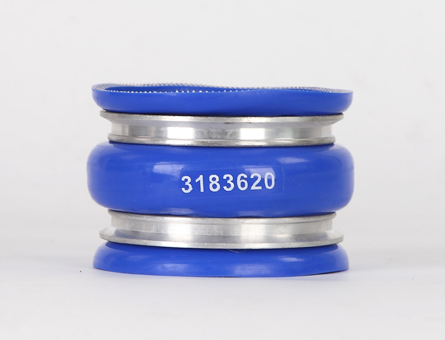

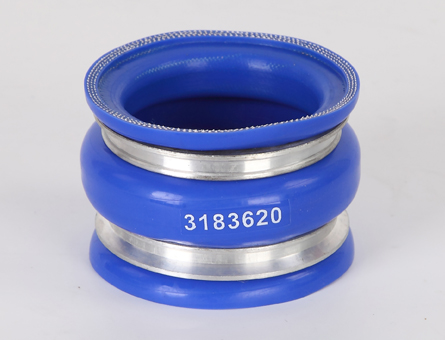

The silicone rubber hoses are used in auto turbo, intercooler and radiator. ISO/TS169494 and ISO9001
Technical specifications:
1) Usage: for charge air, coolant and water, on intercooler, radiator, turbocharger and supercharger, and other systems.
2) Cold / heat resistance range: -40¡ãC to 250¡ãC
3) Pressure range: 0.3 - 1.2MPa
4) Standard color: Blue
5) Other colors:Red / black / green / orange / or according to the customers request
6) ID dimension tolerance: ¡À0.2 - ¡À0.5mm
7) Wall thickness: 2.8 - 5.0mm
8) Average layers of reinforcement: 4 ply (5mm wall)
9) Packaging: high standard packaged
10) Shipment terms: CIF, FOB
11) Payment terms: T/T, L/C
12) Time for producing samples: 3 - 15 days |
|
